说明

这个示例可以说是testgtk.c里的”范围控制”测试部分的修改版。它主要是在一个窗口上放置了三个范围构件，都连接到同一个调整对象，并使用上面以及调整对象部分提到的一些调整参数的控制方法，这样你可以看到它们怎样影响这些构件的使用效果。

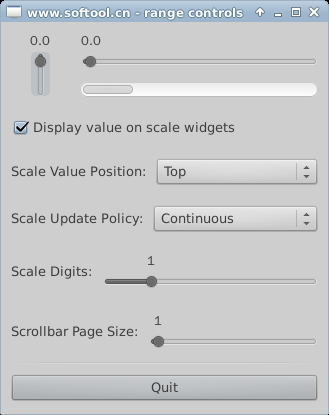

效果

源码

#include <gtk/gtk.h>

GtkWidget *hscale, *vscale;

void cb_pos_menu_select( GtkWidget       *item,
                         GtkPositionType  pos )
{
    /* 设置两个比例构件的比例值的显示位置 */
    gtk_scale_set_value_pos (GTK_SCALE (hscale), pos);
    gtk_scale_set_value_pos (GTK_SCALE (vscale), pos);
}

void cb_update_menu_select( GtkWidget     *item,
                            GtkUpdateType  policy )
{
    /* 设置两个比例构件的更新方式 */
    gtk_range_set_update_policy (GTK_RANGE (hscale), policy);
    gtk_range_set_update_policy (GTK_RANGE (vscale), policy);
}

void cb_digits_scale( GtkAdjustment *adj )
{
    /* 设置adj->value圆整的小数位数 */
    gtk_scale_set_digits (GTK_SCALE (hscale), (gint) adj->value);
    gtk_scale_set_digits (GTK_SCALE (vscale), (gint) adj->value);
}

void cb_page_size( GtkAdjustment *get,
                   GtkAdjustment *set )
{
    /* 将示例调整对象的page size和page increment size设置
     * 为"Page Size"比例构件指定的值 */
    set->page_size = get->value;
    set->page_increment = get->value;

    /* 设置调整对象的值并使它引发一个 "changed" 信号，以重新配置所有
     * 已经连接到这个调整对象的构件。 */
    gtk_adjustment_set_value (set, CLAMP (set->value,
                      set->lower,
                      (set->upper - set->page_size)));
}

void cb_draw_value( GtkToggleButton *button )
{
    /* 根据复选按钮的状态设置在比例构件上是否显示比例值 */
    gtk_scale_set_draw_value (GTK_SCALE (hscale), button->active);
    gtk_scale_set_draw_value (GTK_SCALE (vscale), button->active);
}

/* 方便的函数 */

GtkWidget *make_menu_item (gchar     *name,
                           GCallback  callback,
               gpointer   data)
{
    GtkWidget *item;

    item = gtk_menu_item_new_with_label (name);
    g_signal_connect (G_OBJECT (item), "activate",
                  callback, data);
    gtk_widget_show (item);

    return item;
}

void scale_set_default_values( GtkScale *scale )
{
    gtk_range_set_update_policy (GTK_RANGE (scale),
                                 GTK_UPDATE_CONTINUOUS);
    gtk_scale_set_digits (scale, 1);
    gtk_scale_set_value_pos (scale, GTK_POS_TOP);
    gtk_scale_set_draw_value (scale, TRUE);
}

/* 创建示例窗口 */

void create_range_controls( void )
{
    GtkWidget *window;
    GtkWidget *box1, *box2, *box3;
    GtkWidget *button;
    GtkWidget *scrollbar;
    GtkWidget *separator;
    GtkWidget *opt, *menu, *item;
    GtkWidget *label;
    GtkWidget *scale;
    GtkObject *adj1, *adj2;

    /* 标准的创建窗口代码 */
    window = gtk_window_new (GTK_WINDOW_TOPLEVEL);
    g_signal_connect (G_OBJECT (window), "destroy",
                      G_CALLBACK (gtk_main_quit),
                      NULL);
    gtk_window_set_title (GTK_WINDOW (window), "www.softool.cn - range controls");

    box1 = gtk_vbox_new (FALSE, 0);
    gtk_container_add (GTK_CONTAINER (window), box1);
    gtk_widget_show (box1);

    box2 = gtk_hbox_new (FALSE, 10);
    gtk_container_set_border_width (GTK_CONTAINER (box2), 10);
    gtk_box_pack_start (GTK_BOX (box1), box2, TRUE, TRUE, 0);
    gtk_widget_show (box2);

    /* value, lower, upper, step_increment, page_increment, page_size */
    /* 注意，page_size值只对滚动条构件有区别，并且，你实际上能取得的最高值
     * 是(upper - page_size)。 */
    adj1 = gtk_adjustment_new (0.0, 0.0, 101.0, 0.1, 1.0, 1.0);

    vscale = gtk_vscale_new (GTK_ADJUSTMENT (adj1));
    scale_set_default_values (GTK_SCALE (vscale));
    gtk_box_pack_start (GTK_BOX (box2), vscale, TRUE, TRUE, 0);
    gtk_widget_show (vscale);

    box3 = gtk_vbox_new (FALSE, 10);
    gtk_box_pack_start (GTK_BOX (box2), box3, TRUE, TRUE, 0);
    gtk_widget_show (box3);

    /* 重新使用同一个调整对象 */
    hscale = gtk_hscale_new (GTK_ADJUSTMENT (adj1));
    gtk_widget_set_size_request (GTK_WIDGET (hscale), 200, -1);
    scale_set_default_values (GTK_SCALE (hscale));
    gtk_box_pack_start (GTK_BOX (box3), hscale, TRUE, TRUE, 0);
    gtk_widget_show (hscale);

    /* 再次重用同一个调整对象 */
    scrollbar = gtk_hscrollbar_new (GTK_ADJUSTMENT (adj1));
    /* 注意，这导致当滚动条移动时，比例构件总是连续更新 */
    gtk_range_set_update_policy (GTK_RANGE (scrollbar),
                                 GTK_UPDATE_CONTINUOUS);
    gtk_box_pack_start (GTK_BOX (box3), scrollbar, TRUE, TRUE, 0);
    gtk_widget_show (scrollbar);

    box2 = gtk_hbox_new (FALSE, 10);
    gtk_container_set_border_width (GTK_CONTAINER (box2), 10);
    gtk_box_pack_start (GTK_BOX (box1), box2, TRUE, TRUE, 0);
    gtk_widget_show (box2);

    /* 用一个复选按钮控制是否显示比例构件的值 */
    button = gtk_check_button_new_with_label("Display value on scale widgets");
    gtk_toggle_button_set_active (GTK_TOGGLE_BUTTON (button), TRUE);
    g_signal_connect (G_OBJECT (button), "toggled",
                      G_CALLBACK (cb_draw_value), NULL);
    gtk_box_pack_start (GTK_BOX (box2), button, TRUE, TRUE, 0);
    gtk_widget_show (button);

    box2 = gtk_hbox_new (FALSE, 10);
    gtk_container_set_border_width (GTK_CONTAINER (box2), 10);

    /* 用一个选项菜单以改变显示值的位置 */
    label = gtk_label_new ("Scale Value Position:");
    gtk_box_pack_start (GTK_BOX (box2), label, FALSE, FALSE, 0);
    gtk_widget_show (label);

    opt = gtk_option_menu_new ();
    menu = gtk_menu_new ();

    item = make_menu_item ("Top",
                           G_CALLBACK (cb_pos_menu_select),
                           GINT_TO_POINTER (GTK_POS_TOP));
    gtk_menu_shell_append (GTK_MENU_SHELL (menu), item);

    item = make_menu_item ("Bottom", G_CALLBACK (cb_pos_menu_select),
                           GINT_TO_POINTER (GTK_POS_BOTTOM));
    gtk_menu_shell_append (GTK_MENU_SHELL (menu), item);

    item = make_menu_item ("Left", G_CALLBACK (cb_pos_menu_select),
                           GINT_TO_POINTER (GTK_POS_LEFT));
    gtk_menu_shell_append (GTK_MENU_SHELL (menu), item);

    item = make_menu_item ("Right", G_CALLBACK (cb_pos_menu_select),
                           GINT_TO_POINTER (GTK_POS_RIGHT));
    gtk_menu_shell_append (GTK_MENU_SHELL (menu), item);

    gtk_option_menu_set_menu (GTK_OPTION_MENU (opt), menu);
    gtk_box_pack_start (GTK_BOX (box2), opt, TRUE, TRUE, 0);
    gtk_widget_show (opt);

    gtk_box_pack_start (GTK_BOX (box1), box2, TRUE, TRUE, 0);
    gtk_widget_show (box2);

    box2 = gtk_hbox_new (FALSE, 10);
    gtk_container_set_border_width (GTK_CONTAINER (box2), 10);

    /* 另一个选项菜单，这里是用于设置比例构件的更新方式 */
    label = gtk_label_new ("Scale Update Policy:");
    gtk_box_pack_start (GTK_BOX (box2), label, FALSE, FALSE, 0);
    gtk_widget_show (label);

    opt = gtk_option_menu_new ();
    menu = gtk_menu_new ();

    item = make_menu_item ("Continuous",
                           G_CALLBACK (cb_update_menu_select),
                           GINT_TO_POINTER (GTK_UPDATE_CONTINUOUS));
    gtk_menu_shell_append (GTK_MENU_SHELL (menu), item);

    item = make_menu_item ("Discontinuous",
                           G_CALLBACK (cb_update_menu_select),
                           GINT_TO_POINTER (GTK_UPDATE_DISCONTINUOUS));
    gtk_menu_shell_append (GTK_MENU_SHELL (menu), item);

    item = make_menu_item ("Delayed",
                           G_CALLBACK (cb_update_menu_select),
                           GINT_TO_POINTER (GTK_UPDATE_DELAYED));
    gtk_menu_shell_append (GTK_MENU_SHELL (menu), item);

    gtk_option_menu_set_menu (GTK_OPTION_MENU (opt), menu);
    gtk_box_pack_start (GTK_BOX (box2), opt, TRUE, TRUE, 0);
    gtk_widget_show (opt);

    gtk_box_pack_start (GTK_BOX (box1), box2, TRUE, TRUE, 0);
    gtk_widget_show (box2);

    box2 = gtk_hbox_new (FALSE, 10);
    gtk_container_set_border_width (GTK_CONTAINER (box2), 10);

    /* 一个水平比例构件，用于调整示例比例构件的显示小数位数。 */
    label = gtk_label_new ("Scale Digits:");
    gtk_box_pack_start (GTK_BOX (box2), label, FALSE, FALSE, 0);
    gtk_widget_show (label);

    adj2 = gtk_adjustment_new (1.0, 0.0, 5.0, 1.0, 1.0, 0.0);
    g_signal_connect (G_OBJECT (adj2), "value_changed",
                      G_CALLBACK (cb_digits_scale), NULL);
    scale = gtk_hscale_new (GTK_ADJUSTMENT (adj2));
    gtk_scale_set_digits (GTK_SCALE (scale), 0);
    gtk_box_pack_start (GTK_BOX (box2), scale, TRUE, TRUE, 0);
    gtk_widget_show (scale);

    gtk_box_pack_start (GTK_BOX (box1), box2, TRUE, TRUE, 0);
    gtk_widget_show (box2);

    box2 = gtk_hbox_new (FALSE, 10);
    gtk_container_set_border_width (GTK_CONTAINER (box2), 10);

    /* 以及，最后一个水平比例构件用于调整滚动条的page size。 */
    label = gtk_label_new ("Scrollbar Page Size:");
    gtk_box_pack_start (GTK_BOX (box2), label, FALSE, FALSE, 0);
    gtk_widget_show (label);

    adj2 = gtk_adjustment_new (1.0, 1.0, 101.0, 1.0, 1.0, 0.0);
    g_signal_connect (G_OBJECT (adj2), "value_changed",
                      G_CALLBACK (cb_page_size), adj1);
    scale = gtk_hscale_new (GTK_ADJUSTMENT (adj2));
    gtk_scale_set_digits (GTK_SCALE (scale), 0);
    gtk_box_pack_start (GTK_BOX (box2), scale, TRUE, TRUE, 0);
    gtk_widget_show (scale);

    gtk_box_pack_start (GTK_BOX (box1), box2, TRUE, TRUE, 0);
    gtk_widget_show (box2);

    separator = gtk_hseparator_new ();
    gtk_box_pack_start (GTK_BOX (box1), separator, FALSE, TRUE, 0);
    gtk_widget_show (separator);

    box2 = gtk_vbox_new (FALSE, 10);
    gtk_container_set_border_width (GTK_CONTAINER (box2), 10);
    gtk_box_pack_start (GTK_BOX (box1), box2, FALSE, TRUE, 0);
    gtk_widget_show (box2);

    button = gtk_button_new_with_label ("Quit");
    g_signal_connect_swapped (G_OBJECT (button), "clicked",
                              G_CALLBACK (gtk_main_quit),
                              NULL);
    gtk_box_pack_start (GTK_BOX (box2), button, TRUE, TRUE, 0);
    GTK_WIDGET_SET_FLAGS (button, GTK_CAN_DEFAULT);
    gtk_widget_grab_default (button);
    gtk_widget_show (button);

    gtk_widget_show (window);
}

int main( int   argc,
          char *argv[] )
{
    gtk_init (&argc, &argv);

    create_range_controls ();

    gtk_main ();

    return 0;
}

可以注意到程序没有对 “delete_event” 事件调用 g_signal_connect()，仅仅对 “destroy” 信号调用了该函数。但是 “destroy” 函数一样会执行，因为未经处理的 “delete_event” 事件会引发一个 “destroy” 信号给窗口。
